How loud is that whale, anyway?

When we're thinking about how loud a noise needs to be to damage a whale's hearing, it's important to consider how loud the sounds are that the whale makes itself. If a singing whale makes a sound itself that is at a certain sound level, it is pretty unlikely that it will be deafened by being exposed to a sound of the same level.  This is something like how you are unlikely to be deafened by the sound of your own voice. This isn't to say that continual exposure to sounds at or quieter than their own won't affect whales. It will - just like constant low-noise sounds such as traffic can damage human health.

Calibrating hydrophone sensitivity
curves is very pleasurable.

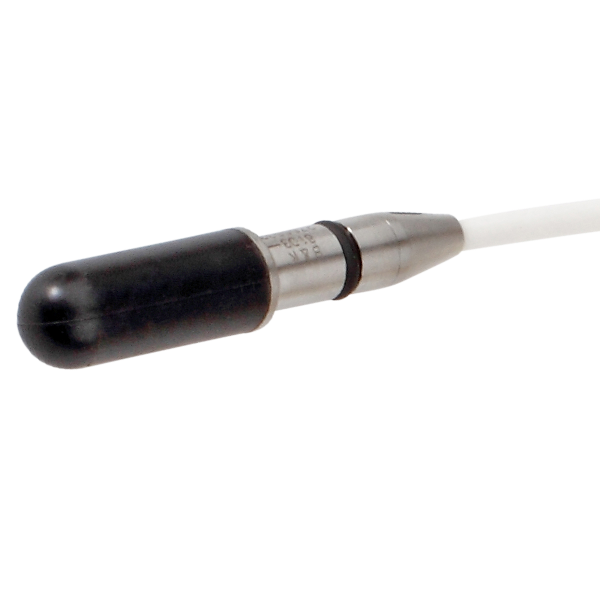

The first step in figuring out how loud your whale is to drop a hydrophone in the water. Hydrophones convert pressure into voltage (if you're interested in how, I explain here). Hydrophones also have a property called sensitivity, which is a measurement of how quiet of a sound that the hydrophone can hear. The difference in sound sensitivity between a very sensitive hydrophone and a very insensitive hydrophone is like the difference in touch sensitivity between your tounge and your heel. A light touch on the heel might not make any neurons fire, but...

As an aside, in the book "Last Chance to See," Douglas Adams puts a microphone in a condom and uses it to try and listen to Yangtzee river dolphins in China. (Insert nerdy bio-acoustition joke here).

Hydrophone sensitivity is usually listed as a single number, something you will notice if you are a buyer of hydrophones or microphones. This number is negative, and the less negative, the more sensitive the hydrophone. Listing a single number actually oversimplifies things. For example, let's look at the sensitivity of the Reson TC 4024 hydrophone at a range of frequencies between 0 and about 90 kHz. If you remember, frequency determines how shrill a sound is. Barry White, for example, has a low frequency voice, and the Chipmunks squeak their songs at high frequencies. OK, so the "typical receiving sensitivity of this hydrophone" is listed as -173 dB. But, as you can see, the sensitivity actually varies quite a lot with frequency:

Because of this, most people only use their hydrophones to record sounds in the "flat frequency response" region, which, for this hydrophone, is between about 4 Hz and 45 kHz. This flat frequency region is pretty much about equal to -173 dB (and if you want to be really specific about things you can always go back and correct for the variation later - as long as your hydrophone is calibrated!)

You'll probably also need to know your gain. Gain means amplification. Generally, the signals coming out of the hydrophone are still too quiet to use, so we amplify them again.

Finally, we can calculate how loud the whale is. So here we go:

Sound Pressure Level = Sensitivity - Gain + 20 * log (Voltage from the Hydrophone)

It's actually pretty simple once you know what all the numbers mean...

... except for the fact that, by convention, the Sound Pressure Level is measured at 1 m from the sound source. So, if we are working with wild animals, we will either have to get incredibly lucky, or we have to figure out a way to deal with attenuation of the sound in water. Attenuation is a fancy word that means "makes quieter." For example, sound-proof walls attenuate the sound of your neighbor's Eminem music.  I'll deal with that one a little bit later.

You almost never get this lucky. Photo by Flip Nicklin.
